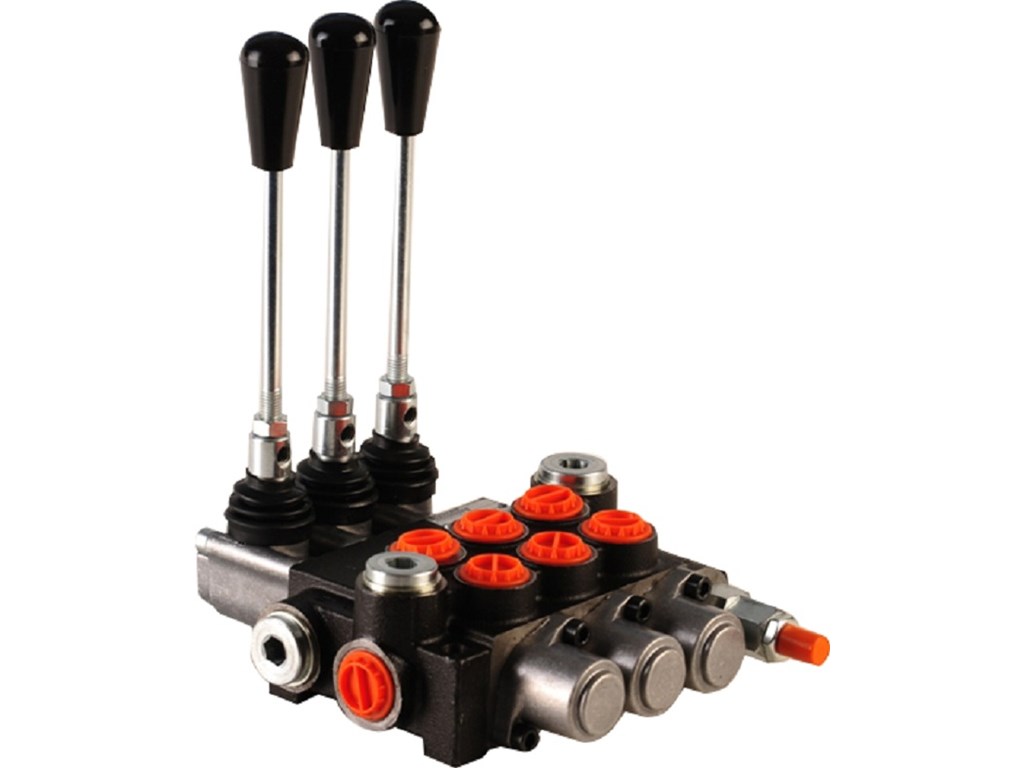

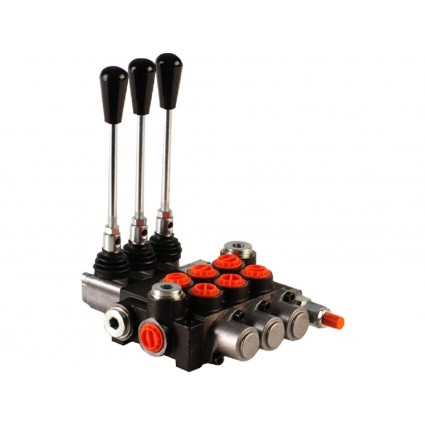

3P40 1/2 Directional Control Valve
P40 Monoblock Directional Control Spool Valves
3P40 1/2 Directional Control Valve
P40 Monoblock Directional Control Spool Valves
Цена:
180.72лв.
Бърза поръчка
Попълнете формата с Вашите имена и телефон за обратна връзка и ние ще Ви се обадим за потвърждение
Повече информация за продукта
| AMBIENT TEMPERATURE oC | -40 … +60 |
| VISCOSITY mm2/s | 12 … 800 |
| FLUID TEMPERATURE oC | -15 … +80 |
| FILTRATION | 10 to NAS 1638 |
| MAX OPERATING PRESSURE bar | 315 |
| BACK PRESSURE bar | 50 |
| NOMINAL FLOW L/min | 40 |
| LEAKAGE (A, B-T) | 15 cm3/min at 120 bar |
| SPOOL STROKE mm | 6 |
| ACTUATING FORCE N | < 200 |
| | |
