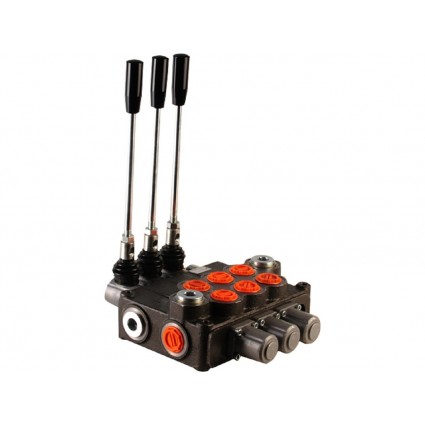

3P120 1'' Directional Control Valve
P120 Monoblock Directional Control Spool Valves
3P120 1'' Directional Control Valve
P120 Monoblock Directional Control Spool Valves
Цена:
539.81лв.
Бърза поръчка
Попълнете формата с Вашите имена и телефон за обратна връзка и ние ще Ви се обадим за потвърждение
Повече информация за продукта
The hydraulic distributor Р120 is used for switching on/off and controlling of the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tanks of hydraulic systems.
AMBIENT TEMPERATURE oC | -40 … +60 |
VISCOSITY mm2/s | 12 … 800 |
FLUID TEMPERATURE oC | -15 … +80 |
FILTRATION | 10 to NAS 1638 |
MAX OPERATING PRESSURE bar | 315 |
BACK PRESSURE bar | 50 |
NOMINAL FLOW L/min | 120 |
LEAKAGE (A, B-T) | 30 cm3/min at 120 bar |
SPOOL STROKE mm | 10 |
ACTUATING FORCE N | < 300 |
