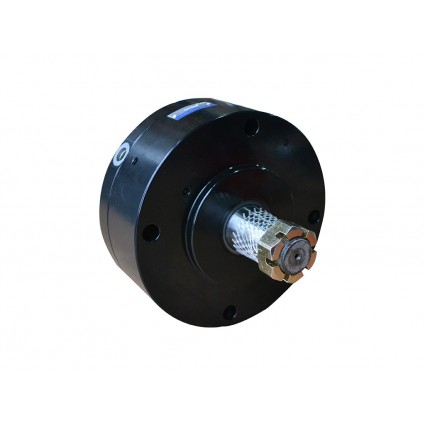

Hydraulic Disc Brake B65TPC
Hydraulic Brakes
Hydraulic Disc Brake B65TPC
Hydraulic Brakes
Цена:
769.81лв.
Бърза поръчка
Попълнете формата с Вашите имена и телефон за обратна връзка и ние ще Ви се обадим за потвърждение
Повече информация за продукта
Static torque: 65 daNm (At 0 bar back pressure)
Initial release pressure: 17 bar
Full release pressure: 20 bar
Max. operating pressure: 240 bar
Max. speed: 60 rpm
Cont. radial shaft load: 1000 daN (Applied at center line of the key and speed of rotation 60 rpm the bearing life is 1000 hours.)
Max. radial shaft load: 2150 daN (The permissible values of radial shaft load may occur for max. 10% of every minute.)
Initial release pressure: 17 bar
Full release pressure: 20 bar
Max. operating pressure: 240 bar
Max. speed: 60 rpm
Cont. radial shaft load: 1000 daN (Applied at center line of the key and speed of rotation 60 rpm the bearing life is 1000 hours.)
Max. radial shaft load: 2150 daN (The permissible values of radial shaft load may occur for max. 10% of every minute.)
